Mold mechanical machining is an essential process in modern industrial manufacturing, helping create highly precise molds for mass production. With the application of CNC, EDM technologies and advanced CAD/CAM design software, mold manufacturing processes are becoming increasingly accurate and efficient.

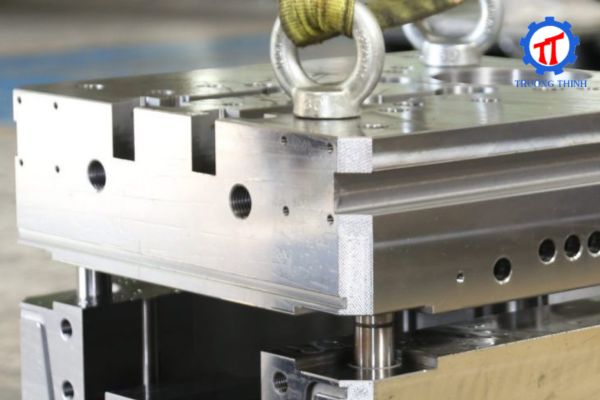

What Is Mold Mechanical Machining?

Mold mechanical machining is the process of designing, manufacturing, and finishing molds used to shape products in industries such as plastics, metal manufacturing, automotive, and electronics. Molds are considered the “heart” of a production line because they directly determine the shape, dimensions, and quality of the final product.

In modern manufacturing, molds are typically made from materials such as alloy steel, tool steel, or stainless steel with high hardness and durability. This allows molds to operate stably for hundreds of thousands or even millions of production cycles.

Mold mechanical machining requires extremely high precision because even a small deviation can affect the entire batch of products being produced. Therefore, factories today apply modern machining technologies combined with digital design software to ensure optimal accuracy.

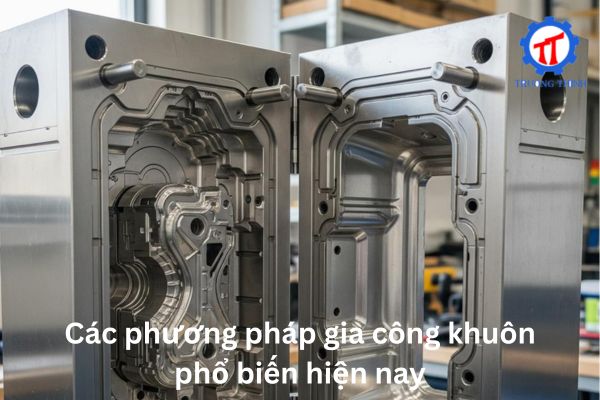

Common Mold Machining Methods Today

Modern mold mechanical machining uses a variety of technologies to meet the technical requirements of different types of molds. Combining multiple machining methods helps create products with high precision and excellent surface finishing.

CNC Milling

CNC milling is one of the most important methods used in mold manufacturing. Computer-controlled milling machines can process complex curved surfaces and small details with high precision.

Advantages of CNC milling:

• Precision up to ±0.01 mm

• Ability to machine complex 3D shapes

• Fast and stable machining speed

• Suitable for mass production

CNC technology is especially effective for machining mold cores or components with complicated geometries.

CNC Turning

CNC turning is used to machine mold components with cylindrical shapes such as shafts, mold cores, or rotational surfaces. This method produces highly precise parts with smooth surface finishes.

EDM Technology

EDM (Electrical Discharge Machining) is a machining technology that uses electrical sparks to remove material. It is commonly used for complex mold components or very hard materials. Because it does not apply direct cutting force, this method minimizes material deformation.

Wire EDM Cutting

Wire EDM uses a thin metal wire to cut materials according to a programmed path. This technology allows extremely precise machining and the creation of sharp edges and complex shapes.

Mold Machining Process in Manufacturing

Mold mechanical machining is usually carried out through a strict process to ensure mold quality and precision.

Step 1: Determining Technical Requirements

Engineers analyze the product to determine dimensions, materials, tolerances, and technical specifications required for the mold.

Step 2: Mold Design Using CAD/CAM

Design software such as SolidWorks, NX, or Mastercam is used to create a 3D mold model and generate CNC toolpaths for machining.

Step 3: Machining Mold Components

At this stage, CNC machines, EDM equipment, and other mechanical tools are used to manufacture each mold component according to the design drawings.

Step 4: Heat Treatment and Surface Processing

Mold components undergo heat treatment to increase hardness and durability. After that, grinding, polishing, or surface finishing processes are performed to achieve high-quality results.

Step 5: Mold Assembly and Inspection

All mold components are assembled and inspected using precision measuring equipment before being put into production.

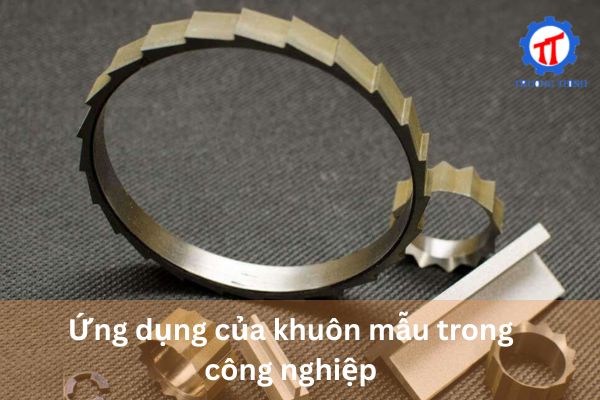

Applications of Mold Machining in Industry

Mold mechanical machining is widely used in many modern manufacturing industries.

• Plastic and Packaging Industry: Products such as plastic bottles, food containers, bottle caps, and household plastic items are produced using plastic molds.

• Automotive and Motorcycle Industry: Many parts such as dashboards, interior plastic components, and metal parts are manufactured using molds.

• Electronics Industry: Molds are used to produce phone cases, computer housings, and many high-precision electronic components.

• Home Appliance Industry: Products like washing machine covers, refrigerators, and vacuum cleaner parts all require molds during manufacturing.

Mold Mechanical Machining Services at Truong Thinh Mechanical

Mold mechanical machining at Truong Thinh Mechanical is trusted by many businesses thanks to its modern machinery system and experienced engineering team. The company provides mold design and custom mold manufacturing services for various industrial sectors.

Truong Thinh Mechanical is equipped with advanced equipment such as CNC milling machines, CNC lathes, wire EDM machines, and professional CAD/CAM software systems. As a result, mold components are machined with high precision and consistent quality.

In addition, the company also offers mold design consultation, production cost optimization, and reliable delivery schedules for customers.

Conclusion

Mold mechanical machining is a fundamental process in modern industrial manufacturing, enabling the production of highly precise and consistent products. With the application of modern CNC, EDM, and CAD/CAM technologies, the machining process has become more efficient than ever. If you are looking for a reliable mold machining provider, Truong Thinh Mechanical is a trustworthy choice for businesses.
