Mechanical turning is a common cutting technique that utilizes the rotation of the workpiece and the linear motion of the cutting tool to create round parts such as shafts, holes, and threads. With high precision and wide application, this method plays an essential role in modern mechanical engineering.

What is Mechanical Turning?

Mechanical turning is the process of removing material from a workpiece by using the rotation of the workpiece and the linear motion of the cutting tool. The workpiece is clamped and rotates, while the cutting tool moves either longitudinally or transversely to remove material and form the desired shape. This method is typically used to machine round-shaped parts such as shafts, holes, threads, and curved surfaces.

Some key characteristics:

• Main motion: The workpiece rotates to perform the cutting action.

• Feed motion: The cutting tool moves in a straight path (longitudinal or transverse) to remove material.

• Applications: Used for machining rotational parts like shafts, holes, threads, and curved surfaces.

• Machines used: Manual lathes, CNC lathes, automatic lathes.

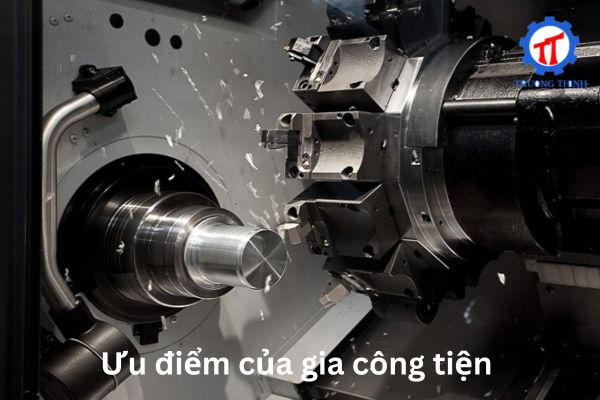

Advantages of Turning Processing

Mechanical turning is one of the most precise machining methods, offering several significant benefits in industrial manufacturing. Firstly, this method provides high accuracy, ensuring parts like shafts, holes, and threads are machined to exact dimensions and technical tolerances. The finished surfaces are smooth, often eliminating the need for further finishing or grinding.

Secondly, turning has high efficiency, especially when using modern CNC lathes, which reduce processing time and increase output. Additionally, turning can be applied to various materials such as steel, copper, aluminum, and plastic, making it flexible in production.

Finally, with the ability to create a variety of rotational forms like stepped shafts, tapers, threads, grooves, etc., this method meets the demands of many industries such as machinery manufacturing, automotive, aerospace, electronics, and medical devices. It is an ideal solution for mass production and high-precision parts.

See more at: http://cokhiphutrotruongthinh.com/gia-cong-tien---cac-phuong-phap-gia-cong-pho-bien-hien-nay-bv.html

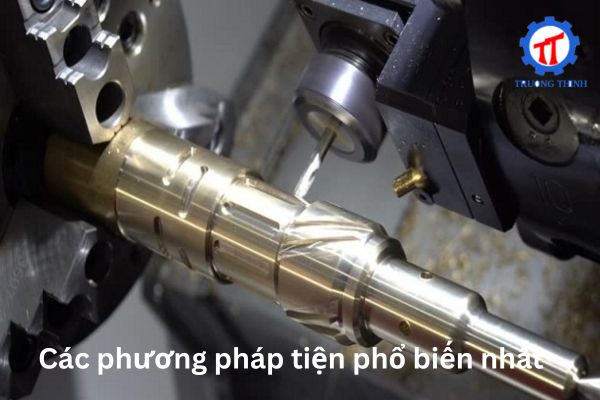

Most Common Turning Methods

Mechanical turning is a critical technique in mechanical engineering, used to produce rotational parts with high precision. Depending on the product requirements, shape, and machining location, various turning methods are applied. Below are the most common turning methods today:

External Turning

This method is used to machine the external cylindrical surface of the workpiece. It can produce smooth, stepped, tapered, or uniquely shaped cylinders. This is the most common turning method and is suitable for creating shafts, guide rods, or other symmetrical rotating parts.

Boring (Internal Turning)

Boring involves enlarging or finishing pre-existing holes in the part. It requires precise positioning and rigid cutting tools to ensure concentricity and smooth internal surfaces.

Thread Turning

This method is used to create threads on the surface of a part, such as a shaft or hole, commonly for mechanical connections. Thread turning requires the machine to synchronize spindle speed and feed rate accurately to produce precise thread pitches.

Parting (Cut-Off Turning)

This method is used to separate the workpiece into parts or cut off finished components from the main material. Parting tools are specially shaped to ensure accuracy and safety during separation.

Facing

Facing involves machining the end face of the workpiece to make it flat and smooth. It is commonly used to prepare contact surfaces or create a perpendicular face to the axis of the part.

Grooving

Grooving is used to cut small grooves into a workpiece, such as grooves for seals or retaining rings. The shape and depth of the groove depend on the cutting tool design.

Conclusion

Mechanical turning is a crucial cutting process in the mechanical industry, enabling the production of highly precise rotational components. With the advancement of CNC technology, turning has become more efficient and versatile, meeting the diverse production needs of various industrial sectors.
