The principle of powder coating is one of the most modern and advanced painting technologies today, widely used in various industries. This technology not only provides superior surface quality but also ensures environmental friendliness and user safety.

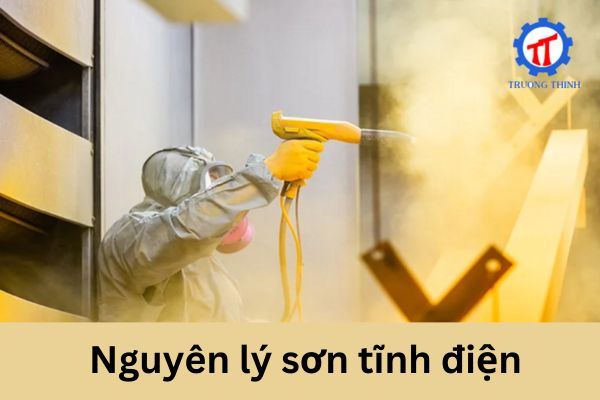

Principle of Powder Coating

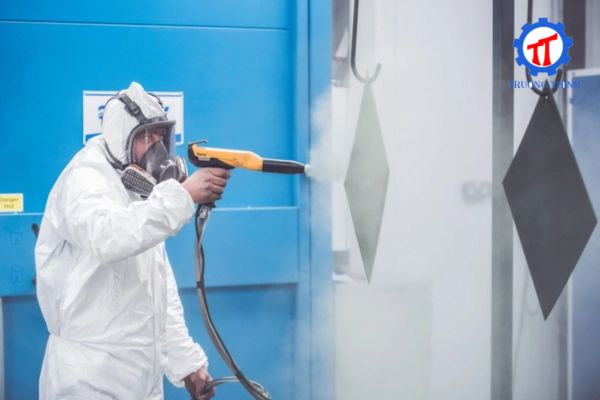

The principle of powder coating involves applying powder paint to a material surface using an electrostatic spray gun. When the powder paint passes through the spray gun, it is heated and positively charged (+) at the nozzle. The powder paint then moves along the electric field and adheres to the negatively charged (-) material surface due to the attraction between the ions. This method ensures the powder paint is evenly distributed around the material and reaches even the hidden surfaces.

The powder coating system includes an electrostatic spray gun, automatic controller, spray booth, powder recovery equipment, and infrared curing oven. Additionally, there are supporting devices such as air compressors, air dryer separators, and composite chemical tanks for surface treatment before coating.

In the powder coating process, the material must be heated to a high temperature to prevent the powder from drying before adhering to the surface. This heating process consumes significant time and energy, so coating batches are usually performed with a single color. When changing colors, there might be a delay, or a manual spray method over the old powder coat may be used, though more costly, it ensures comparable durability.

Advantages of Powder Coating

The principle of powder coating saves labor costs thanks to the ease of automation with an automatic spray system. The process does not require a primer coat, saving time and costs. Areas not adequately coated can be easily cleaned.

The powder paint is easily cleaned from the operator and equipment without solvents, avoiding environmental pollution.

Powder coating provides products with long-lasting durability (over 5 years), high gloss, resistance to chemical corrosion, and weather effects. The wide range of colors and high precision meets all design needs.

Read More: https://cokhiphutrotruongthinh.com/cac-phuong-phap-gia-cong-kim-loai-tam-duoc-dung-pho-bien-bv.html

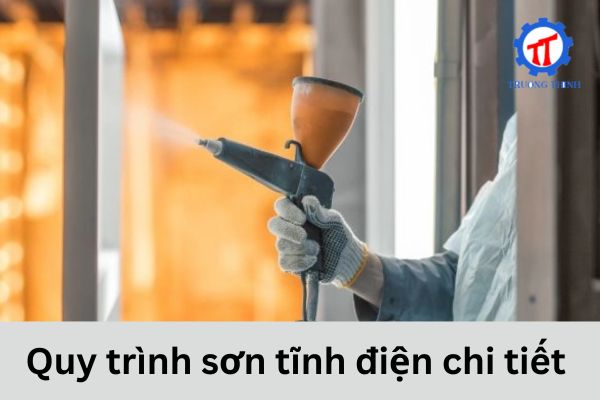

Detailed Powder Coating Process

Step 1: Preparation and Surface Treatment

To ensure better adhesion of the powder paint, the material must be surface-treated before painting. This process removes impurities such as rust, grease, dirt, and other organic contaminants while enhancing the material surface for better paint contact. The process typically involves specialized chemicals and includes treatment tanks like:

• Degreasing tank

• Rust removal tank

• Clean water tank

• Surface conditioning tank

• Phosphate coating tank

• Product passivation tank

These tanks are usually made of cement and coated with composite plastic to resist corrosion. The chemicals in the tanks are checked daily to ensure concentration standards. After treatment, the product is dried at a maximum temperature of 120°C for 10-15 minutes to remove moisture and prepare for painting.

Step 2: Electrostatic Spraying

Before spraying, the products are cleaned with compressed air to remove dust. The spray equipment, such as the spray gun, nozzle, electricity, air, grounding, and spray booth exhaust fan, is checked. The spray gun should always be perpendicular to the object being painted, with a distance of 10-15 cm for manual spraying and 20-25 cm for automatic spraying. Manual spraying starts with the corners, followed by flat surfaces, spraying the bottom first and then the top.

Step 3: Curing

After spraying, the product is placed in a curing oven at temperatures from 180°C to 200°C for about 10 minutes. The main heat source can be an infrared heater or a burner using gas. This step ensures the powder paint adheres firmly and creates a uniform surface on the material.

Step 4: Inspection and Packaging

The powder coating system is logically arranged in the workshop for convenient inspection and packaging. Particularly for high-capacity, automated processing systems, a well-organized layout enhances operational efficiency and saves production space.

Conclusion

In conclusion, the powder coating process is not only simple and efficient but also offers many economic benefits and high quality. With its recyclability and wide application, powder coating is a sustainable, environmentally friendly, and reliable solution for today's manufacturing industry.
