The ultrasonic metal welding machine is an advanced technology utilizing ultrasonic waves to connect metal materials without requiring heat welding. To grasp its principles and applications, let's delve into the following article.

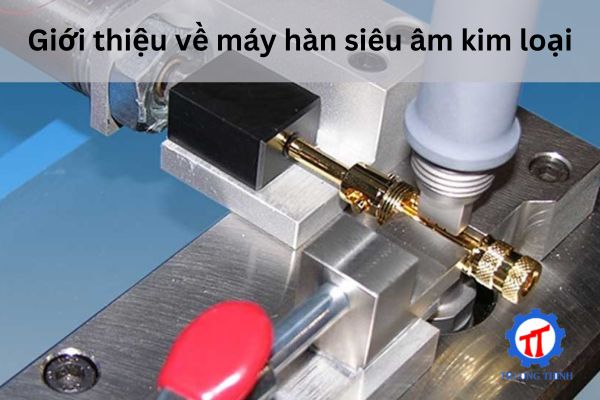

Introduction to Ultrasonic Metal Welding Machines

Ultrasonic metal welding machines introduce a synchronized mechanism of spring pressure, creating a responsive reaction to pressure changes. This prevents slippage between the horn and the workpiece, reducing the loss of ultrasonic energy and limiting dust and waste.

Moreover, the high stiffness pressure mechanism maintains minimal deviation, ensuring consistent pressure at the welding zone. The automated ultrasonic oscillation frequency monitoring system ensures stable vibration amplitudes, even under high loads.

Additionally, this machine offers four oscillation control methods: time, sink value of the workpiece, working height, and applied energy. This provides effective and flexible depth control, with resolution reaching up to 1 micron.

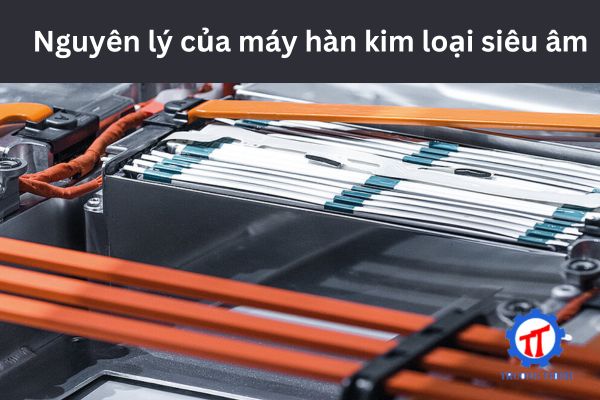

Principles of Ultrasonic Metal Welding

The ultrasonic metal welding machine operates by oscillating the contact surfaces of metal plates at a high frequency where they meet. This oscillation generates localized heat, melting these areas and subsequently solidifying to create a weld. This method does not alter the microstructure, maintaining the electrical resistance as the current passes through the weld.

Link: Basic Types of Metal Welding and Cutting Machines

Applications of Ultrasonic Metal Welding Machines

The focus of ultrasonic metal welding machine applications lies in easy management and operation. This system offers graphic monitoring capabilities for easy process observation. Control via a 7-inch LCD touchscreen interface provides users with simple operation.

Furthermore, this welding machine provides essential parameters such as maximum ultrasonic output, energy, and workpiece sink mass. Through serial communication (RS-232C), operators can conveniently set and manage data.

The visual graphical display features, along with monitoring and management capabilities, create a safe and efficient welding environment. This aids users in making accurate and immediate decisions based on the provided information.

Conclusion

The ultrasonic metal welding machine not only creates strong connections but also minimizes deformation and environmental pollution. The flexibility and precision of this technology have opened numerous opportunities across various industries, from automotive, medical, aerospace, to electronics manufacturing. If you're considering purchasing this welding machine, reach out to Cơ Khí Trường Thịnh.
