A mechanical processing drawing is a technical document that clearly presents the shape, dimensions, and technical requirements of the product to be manufactured. It serves as a “universal language” between design engineers and machinists, helping to turn technical concepts into real products with high precision. This tool is indispensable in the mechanical manufacturing process.

What is a Mechanical Processing Drawing?

A mechanical processing drawing (also known as a technical drawing) describes all the technical details of a mechanical component or product, such as: shape, dimensions, tolerances, materials, machining requirements, etc. It is the foundation for manufacturing, inspection, assembly, and product completion.

Functions of mechanical processing drawings:

• Provide complete information for manufacturing and product inspection.

• Ensure accuracy in production and assembly.

• Minimize errors and reduce material waste.

• Maintain consistency between departments: design – manufacturing – inspection.

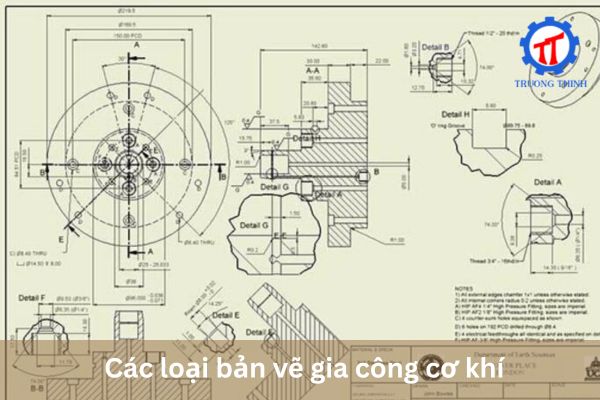

Common Types of Mechanical Processing Drawings

Here are the main types of mechanical processing drawings:

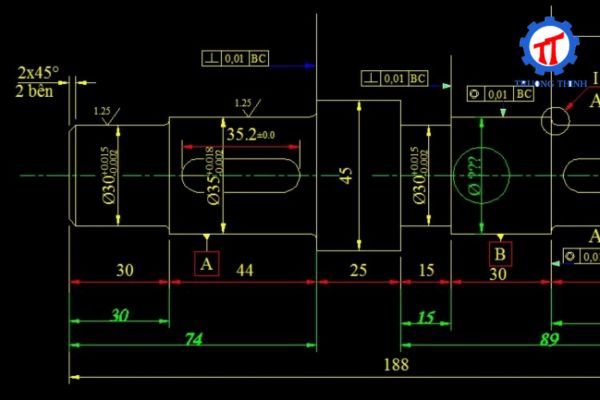

Detail Drawing

The most basic type of mechanical processing drawing, a detail drawing contains all necessary information about the shape, dimensions, tolerances, surface roughness, material, and technical requirements for individual parts. It serves as the basis for machining and quality control, ensuring each part is made precisely according to the original design.

Assembly Drawing

An assembly drawing illustrates how mechanical parts are connected to form a complete unit or product. It includes information on installation positions, assembly sequence, connection methods, and quantities of parts. This type helps technicians assemble components correctly, safely, and accurately.

General Drawing

A general drawing gives an overall view of the entire mechanical product or system. It outlines general dimensions, installation locations, connections with related components, and general technical requirements. General drawings are often used in the initial design phase and system installation.

See more: http://cokhiphutrotruongthinh.com/tong-hop-cac-loai-may-gia-cong-co-khi-pho-bien-hien-nay-bv.html

Exploded Drawing and Technological Process Drawing

An exploded drawing shows the product structure with separated parts, making it easier to repair or replace components. Meanwhile, the technological process drawing describes the sequential steps of machining, helping control quality and optimize production.

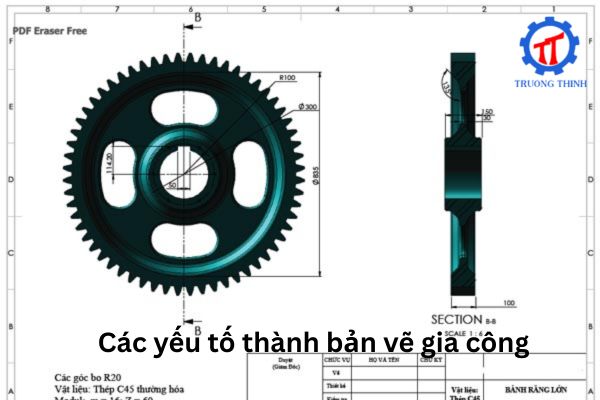

Elements of a Mechanical Processing Drawing

A complete mechanical processing drawing must include the following elements:

• View Representations: Includes orthographic projections, sectional views, cross-sections... to clearly visualize the component in 3D.

• Dimensions: Essential for defining accurate length, diameter, depth, etc., usually in millimeters (mm).

• Tolerances: Specifies the acceptable deviations during machining to ensure technical requirements are met despite minor errors.

• Surface Roughness: Indicates the surface finish after machining, affecting durability, performance, and aesthetics.

• Material and Technical Requirements: Clearly states the materials used and any special requirements such as heat treatment, surface finishing...

Mechanical Processing Services by Cơ Khí Trường Thịnh

Cơ Khí Trường Thịnh specializes in precision mechanical processing based on technical drawings. We offer design, fabrication, and production of mechanical parts made from stainless steel, steel, iron… tailored to customer requirements in industries like manufacturing, construction, and electromechanics.

With a team of skilled engineers and modern machinery, Trường Thịnh guarantees products that meet technical standards, have minimal tolerances, and excellent surface finishing. We commit to fast turnaround, competitive pricing, and dedicated technical support.

Conclusion

Mechanical processing drawings are more than just visual illustrations; they are key tools in the industrial manufacturing process. Understanding and using these drawings properly helps businesses save time and cost while ensuring the quality of final products.
