Electrostatic powder coating technology is increasingly applied in the industrial sector due to its uniform coverage, cost efficiency, and durability. Let’s explore in detail the process, working principle, and steps involved in powder coating to improve production efficiency, product quality, and optimize operational costs.

What is Electrostatic Powder Coating Technology?

Electrostatic powder coating, also known as powder coating, is a surface finishing method that uses electrically charged powder sprayed through a specialized spray gun. When it comes into contact with a material surface charged with the opposite polarity, the powder strongly adheres to the surface. It is then heated to form a durable, finished coating. This method uses no solvents, making it environmentally friendly and safe for users.

Working Principle of Electrostatic Powder Coating

Electrostatic powder coating operates based on the principle of electrical charge. The powder is positively charged as it passes through the spray gun, while the surface of the material is negatively charged. During spraying, the powder particles move along the electric field and are tightly attracted to the material surface.

This electrostatic attraction ensures that the powder adheres evenly, even in hidden corners. After spraying, the product is placed into a curing oven at temperatures between 180–200°C for around 10 minutes to melt and form a durable coating.

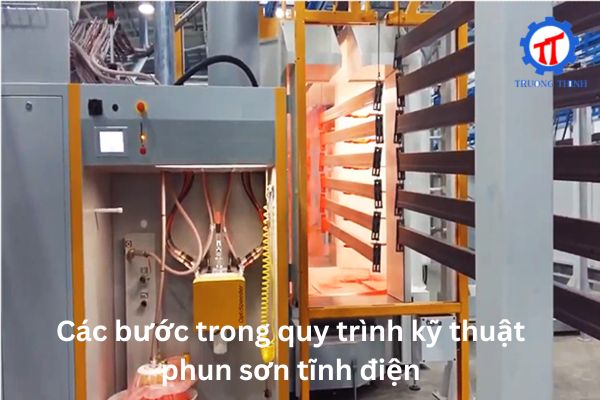

Steps in the Electrostatic Powder Coating Process

The steps in the electrostatic powder coating process ensure strong adhesion, consistent color, and enhanced durability of the coating under harsh environmental conditions.

Step 1: Surface Preparation

Before spraying, the surface must be treated to remove rust, dust, and grease. This typically includes acid rust removal, cleaning, degreasing, and surface shaping using specialized chemicals.

Step 2: Drying the Product

After treatment, the product is dried using an oven or heat gun to remove any moisture, which helps improve paint adhesion. This is a critical step that directly affects the smoothness and durability of the finish.

Step 3: Powder Coating Application

The product is placed in the spray booth, where single or dual spray guns are used to ensure even coverage. A distance of 100–200mm is maintained between products. Corners, flat surfaces, and all sides are coated sequentially to ensure optimal coverage.

Step 4: Curing

After spraying, the product is cured at high temperatures so the powder melts and firmly adheres. Infrared or gas burner ovens are commonly used to maintain a stable temperature.

Step 5: Inspection and Packaging

Finally, the product is thoroughly inspected for paint adhesion, color, smoothness, and coverage. It is then packaged according to standards to protect the finish during transportation.

Types of Electrostatic Powder Coating Technology

Currently, electrostatic powder coating is divided into two types:

• Dry powder coating: The most common form, solvent-free, used for metals such as iron, steel, and aluminum.

• Wet powder coating: Powder is mixed with water or solvent, used for materials like plastic, wood, or metals not suitable for dry powder.

Dry powder coating is preferred for its superior coverage, cost-efficiency, and environmental friendliness.

See more: http://cokhiphutrotruongthinh.com/gia-cong-co-khi-dot-dap---tim-hieu-uu-diem-va-vat-lieu-gia-cong-bv.html

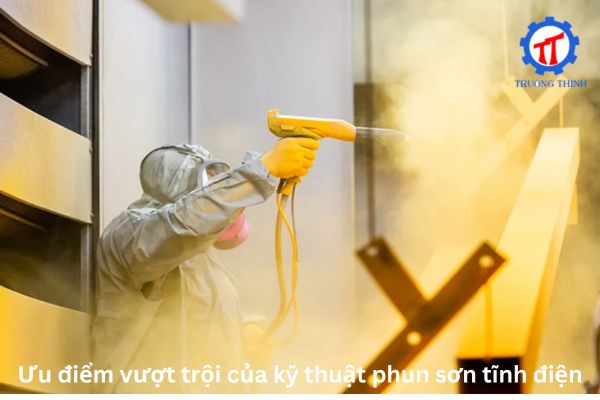

Outstanding Advantages of Electrostatic Powder Coating Technology

Economic Benefits

• Cost optimization through recovery and reuse of excess powder

• Easy automation, reducing labor costs

• No need for primer

• Shortens product finishing time

Product Quality

• Coating lifespan of 5–10 years

• High gloss, strong adhesion, excellent corrosion resistance

• Wide range of colors, fade-resistant against chemicals and weather

Environmental and Safety Benefits

• No solvents, no toxic emissions

• Safe for operators’ health

• Easy to clean when powder contacts skin or equipment

Applications of Electrostatic Powder Coating Technology

Electrostatic powder coating is widely used in many industries such as:

• Mechanical and industrial equipment manufacturing: Coating machine shells, steel frames

• Interior decoration: Painting metal furniture like chairs, beds, cabinets

• Electronics and electrical industry: Painting electrical cabinets, control devices

• Marine and aviation industries: Coating high-corrosion-resistant metal components

Conclusion

Electrostatic powder coating technology not only enhances product quality and durability but also optimizes costs and protects the environment. With numerous outstanding advantages, it is an ideal solution for businesses seeking advanced, efficient, and sustainable coating technology for modern production.
