Metal stamping in Hai Phong is a forming method widely used in mechanical engineering, machine manufacturing, and supporting industries. This technology uses the pressing force of a stamping machine combined with specialized dies to transform sheet metal into products with the required shapes and dimensions.

What Is Metal Stamping in Hai Phong? Common Methods

Metal stamping in Hai Phong is the process of applying force to metal blanks through a system of punches, dies, or stamping molds to create the desired shape. Unlike cutting processes, this method primarily relies on plastic deformation or material separation according to the die profile.

Cutting and Punching

Stamping cutting is used to separate blanks or create the outer profile of sheet metal. This method is commonly applied when products require relatively consistent dimensions and contours between individual components.

Punching focuses on creating holes in metal sheets according to predetermined positions and dimensions. These holes can be used for bolts, screws, assembly, ventilation, or connections with other components in a product.

Bending and Deep Drawing

Metal stamping in Hai Phong can involve bending sheet metal along specific angles or lines to create three-dimensional shapes. Depending on the die design, products can be formed into V, U, Z, or other profiles.

Deep drawing is used to create hollow or deep-shaped components from flat metal blanks. This method is commonly used to manufacture boxes, metal covers, cups, housings, and other products with similar structures.

Progressive and Forming Stamping

Progressive stamping combines multiple operations within the same die system, where the material passes through different stations for cutting, punching, bending, or forming. This method is suitable for high-volume production because it can reduce processing time and improve product consistency.

Forming stamping is selected when products have more complex profiles or geometries. Die design must be calculated based on the material, stamping force, material thickness, and dimensional requirements of the component.

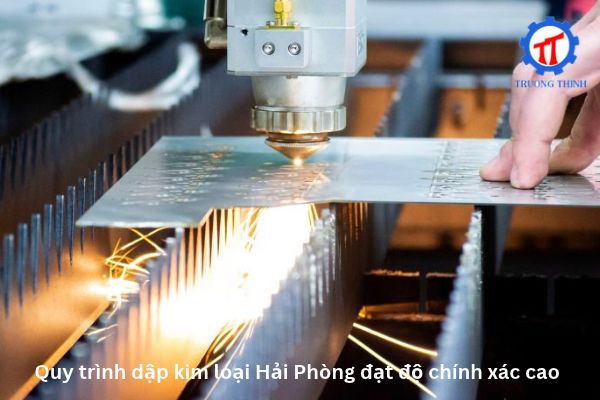

Metal Stamping Process in Hai Phong for High Precision

To ensure that stamped products achieve the required shape and dimensions, the process must be carefully prepared from the initial drawing review. Controlling the material, die, stamping machine, and finished products directly affects the quality of each production batch.

Receiving Drawings and Analyzing Technical Requirements

First, technicians need to review the technical drawings to determine dimensions, material thickness, tolerances, hole positions, and product geometry. At the same time, the material and expected production volume should be identified to select the appropriate stamping method.

Metal stamping in Hai Phong is more effective when the production method is carefully calculated before manufacturing begins. For complex components, simulation or an assessment of material formability can help minimize defects such as cracking, wrinkling, or dimensional inaccuracies.

Die Design and Stamping Machine Preparation

The stamping die is a key component that directly determines the shape of the finished product. Depending on the specific component, the die can be designed for cutting, punching, bending, deep drawing, or a combination of multiple operations.

Once the die has been prepared, the stamping machine is configured according to the material and product requirements. Parameters such as stamping force, stroke, speed, and blank positioning should be checked before official production begins.

Trial Stamping, Inspection, and Mass Production

Before starting large-scale production, sample products are typically inspected for dimensions, shape, and critical positions specified in the technical drawings. If deviations are detected, machine parameters or die settings may need to be adjusted accordingly.

Metal stamping in Hai Phong can proceed according to the required production volume after the trial stage has been completed successfully. Finished products are inspected further and may undergo additional processes such as deburring, grinding, drilling, threading, welding, or surface finishing depending on the design.

→ See more: Truong Thinh Mechanical Machining Services

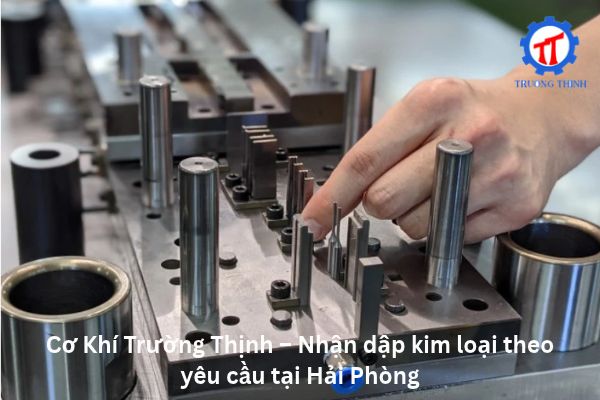

Truong Thinh Mechanical – Custom Metal Stamping in Hai Phong

Metal stamping in Hai Phong at Truong Thinh Mechanical is carried out based on customers' technical drawings and specific requirements. In addition to stamping, the company can combine other processes such as laser cutting, sheet metal bending, CNC machining, and welding to complete the products.

Truong Thinh Mechanical can accept mechanical machining requirements involving various materials and dimensions. Depending on the product, the technical team evaluates its characteristics, production volume, and technical specifications to recommend an appropriate machining solution.

Conclusion

Metal stamping in Hai Phong is an effective forming solution for a wide range of mechanical products, particularly orders requiring consistent quality and large production volumes. From die design and material selection to finished-product inspection, every stage needs to be carefully controlled. Truong Thinh Mechanical provides drawing-based machining solutions for diverse metal manufacturing requirements.
